Home > Products > Conveyor Needle

Parameter

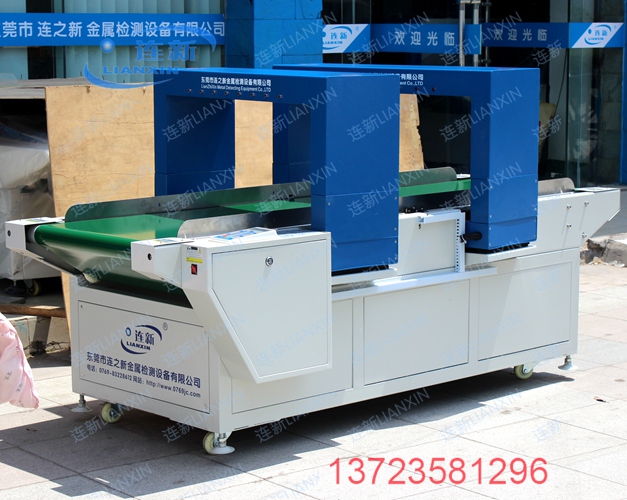

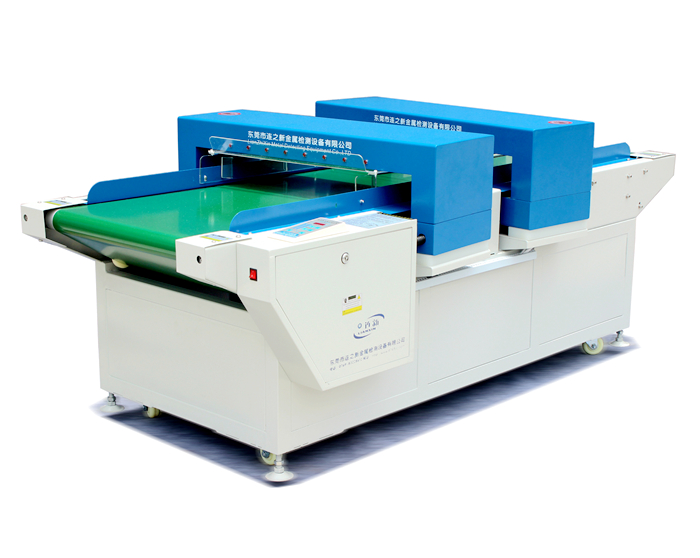

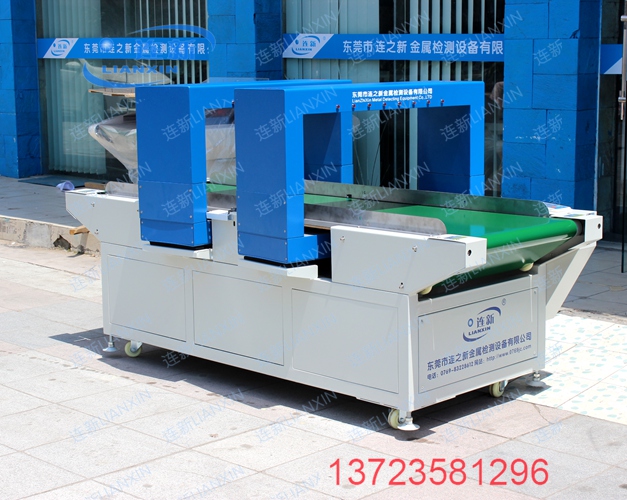

square tube type double probe needle detector

Model:LX-9003

Square tube type double probe needle detector machine is a double check needle machine, needle detector with dual channel detection ability. The whole machine adopts surrounded by square tube and the whole design of the needle detector machine, a test is equivalent to four needle, needle detection precision is more secure. Before and after the double probe adopts two probes of eight, to avoid the whole case needle breakage directional undetection, can ensure the needle all-round not leak!

Tel:13723581296

Explanation

 Application places:

Check the broken needle, casual shoes, sports shoes, insoles, uppers, soles, fabrics, non-woven fabrics, embroidery, towel, bath towel, shoes, gloves, toys, crafts, all export check the broken needle textiles.

A needle: hardware buttons, metal zipper, Japanese word buckle, bead chain, brooch, clothing handbags metal accessories needle machine.

The aluminum foil packing: suitable for aluminum foil packaging of food metal foreign body check, if you want to check all metal foreign body please select DLM - 508 series of products.


Function characteristics:

S the whole machine adopts full steel frame design, sealed dust, the main parts adopt imported parts and components, to ensure product performance;

S have the characteristics of conventional needle detector machine all functions. With up and down all four groups before and after the sensor (eight word), the original magnetic field induction "one" word into "eight" word, fork magnetic field is negative corresponding phase as principle, avoided due to the uneven distribution of magnetic field and the height in the inspection area, the effects of improving the detection sensitivity and the stability of the machine, the good inspection product quality strictly.

S strong anti-jamming computer chip integrated circuits, double road 64 group before and after sufficient sensors;

S all function keys are light touch membrane switch, avoid mechanical keys easy damage faults;

S position display function, eight parts according to the exact breakage position function;

S can be mounted to the optional printer;

S have counting function, the difference between through good quality and bad quality (qualified, the total number, check out);

S alarm function for three kinds of sounds, lights and stop machine. 1 ~ 10 adjusted sensitivity;

S characteristic leakage protection circuit of lightning protection, energy saving design, ten minutes without automatic stop operation;

S all after open the total power supply function, not completed before start the motor;

S with B/C (material/finished product) mode switching function, to adapt to different products of needle detector;

S when they tested the broken needle, iron objects, two sound and light alarm, and stop a throwback to the starting point, and automatically run again;

S high sensitivity, detection of longmen height is 12 cm, the detection of small diameter of 1.0 mm iron filings, at nine o 'clock don't leak testing method.

S a new paragraph! The thick aluminum alloy roller, Taiwan brand motor. The fuselage adopts full steel frame design, ABS or aluminum wings are more durable than the old one, and stronger resistance to weak magnetic resonance interference, long-distance transport is not easy to touch bad;



Technical parameters



MODEL

6010

6015

6020

6025

6030


Detection width

600

600

600

600

600


Detection ability

≥Φ0.8

≥Φ1.0

≥Φ1.2

≥Φ1.5

≥Φ2.0


Detection hight

100mm

130mm

180mm

230mm

280mm


Detection method

Magnetic induction


Detection adjustment

1-10级


Alarm method

Sound / light alarm and return


Power supply

Ac220V 50-60Hz。


Pated output

120W。


Dunension

 L2238×W1000×H910-930-980-1100。


Weight

380KG。


For the customers straight hair goods of Hong Kong, Vietnam, Cambodia and other southeast Asian countries!

Description: the sensitivity of the high and low by the detection height (i.e., channel or longmen) to determine the highest accuracy. The higher the longmen, sensitivity is reduced accordingly. The corresponding height above the standards and testing is in the condition of empty machine test results; Channel height and width detection, can be customized according to the requirement.
